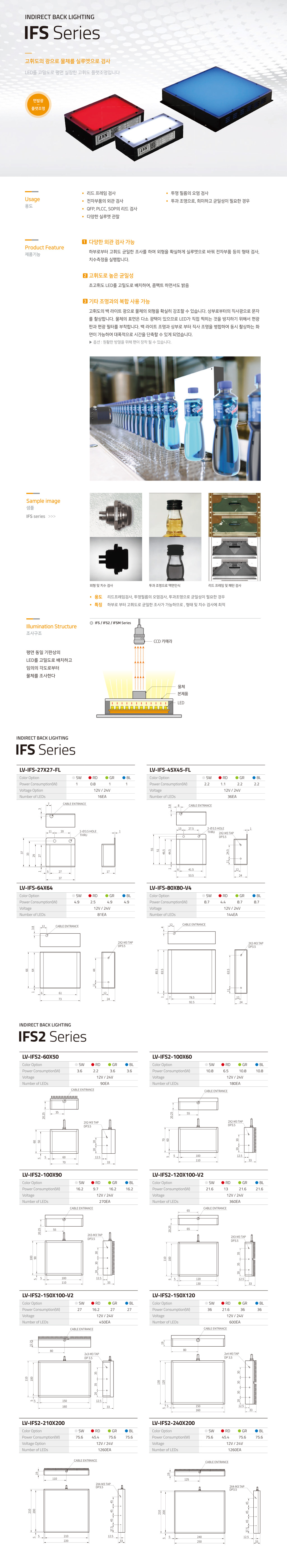

고휘도 LED를 사용한 고밀도 플랫조명
| ※ IFS Series List | |
|---|---|
| Model Name | LV-IFS-27X27-FL |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 1 / 0.8 / 1 / 1 W |
| Dimensions | W 37mm x D 37mm x H 17mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 16EA |
| REMARKS | 기존제품 |
| Model Name | LV-IFS-45X45-FL |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 2.2 / 1.1 / 2.2 / 2.2 W |
| Dimensions | W 53.5mm x D 55mm x H 24mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 36EA |
| REMARKS | 기존제품 |
| Model Name | LV-IFS-64X64 |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 4.9 / 2.5 / 4.9 / 4.9 W |
| Dimensions | W 73mm x D 66mm x H 24mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 81EA |
| REMARKS | 기존제품 |
| Model Name | LV-IFS-80X80-V4 |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 8.7 / 4.4 / 8.7 / 8.7 W |
| Dimensions | W 92.5mm x D 85.5mm x H 24mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 144EA |
| REMARKS | 기존제품 |
| ※ IFS2 Series List | |
| Model Name | LV-IFS2-60X50 |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 3.6 / 2.2 / 3.6 / 3.6 W |
| Dimensions | W 112mm x D 105mm x H 25mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 90EA |
| REMARKS | L2835 |
| Model Name | LV-IFS2-100X60 |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 10.8 / 6.5 / 10.8 / 10.8 W |
| Dimensions | W 100mm x D 70mm x H 33mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 180EA |
| REMARKS | L2835 |
| Model Name | LV-IFS2-100X90 |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 16.2 / 9.7 / 16.2 / 16.2 W |
| Dimensions | W 110mm x D 100mm x H 33mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 270EA |
| REMARKS | L2835 |
| Model Name | LV-IFS2-120X100-V2 |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 21.6 / 13 / 21.6 / 21.6 W |
| Dimensions | W 130mm x D 110mm x H 33mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 360EA |
| REMARKS | L2835 |
| Model Name | LV-IFS2-150X100-V2 |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 27 / 16.2 / 27 / 27 W |
| Dimensions | W 160mm x D 110mm x H 33mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 450EA |
| REMARKS | L2835 |
| Model Name | LV-IFS2-150X120 |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 36 / 21.6 / 36 / 36 W |
| Dimensions | W 160mm x D 130mm x H 33mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 600EA |
| REMARKS | L2835 |
| Model Name | LV-IFS2-210X200 |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 75.6 / 45.4 / 75.6 / 75.6 W |
| Dimensions | W 220mm x D 210mm x H 33mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 1260EA |
| REMARKS | L2835 |
| Model Name | LV-IFS2-240X200 |
| Color Option | SW / RD / GR / BL |
| Power Consumption | 75.6 / 45.4 / 75.6 / 75.6 W |
| Dimensions | W 250mm x D 210mm x H 33mm |
| Voltage Option | 12V / 24V |
| Number of LEDs | 1260EA |
| REMARKS | L2835 |
